Radial tree chart

info

Charts are available with Avalonia Pro.

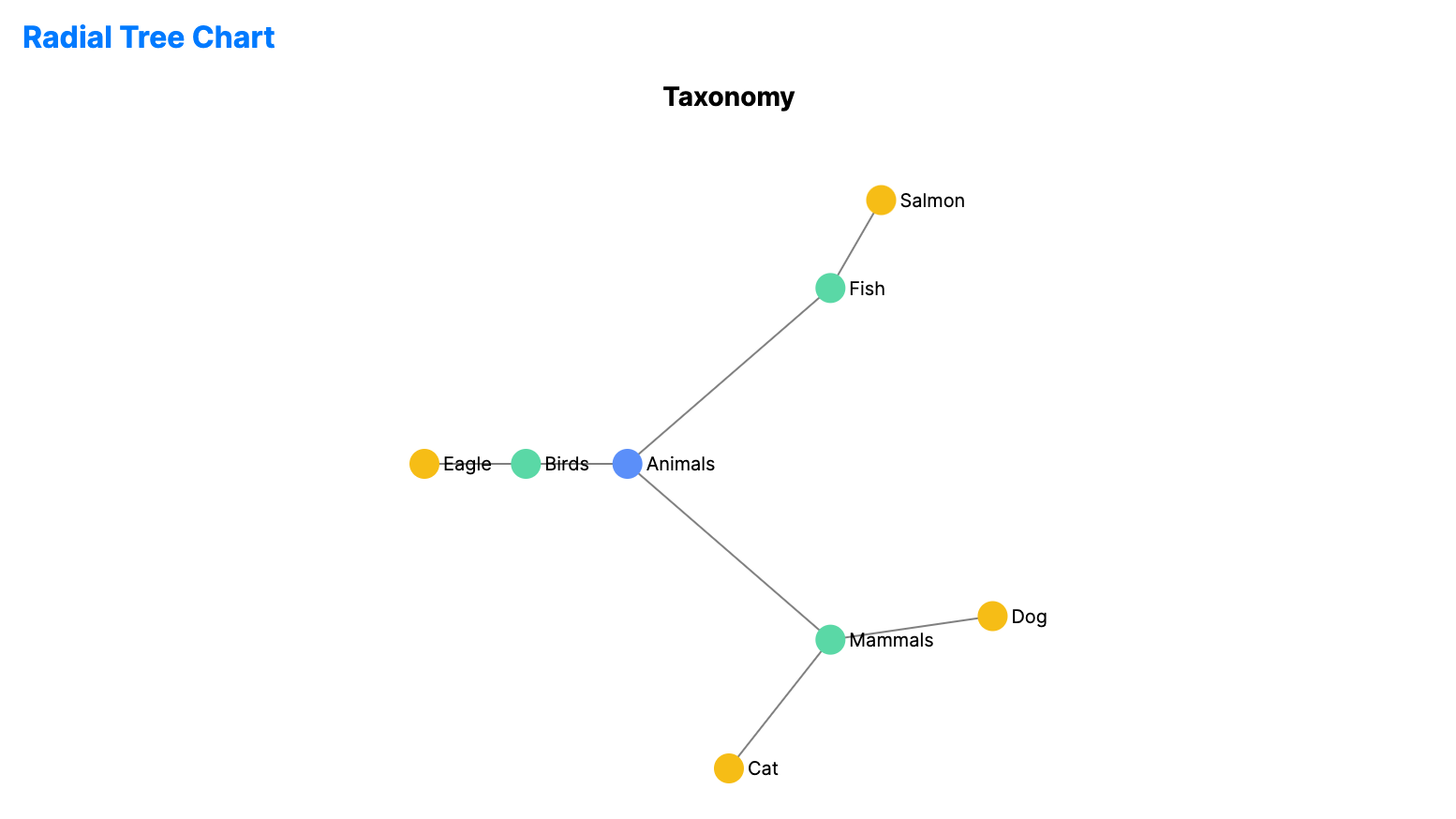

Radial tree charts represent hierarchical data where the root is at the center and child nodes radiate outward in concentric circles. This layout is highly space-efficient for large trees.

When to use

• Directory visualizers: Showing many levels of folders in a compact circular form.
• Genomic maps: Visualizing relationships between many biological entities.
• Network topology: Mapping devices in a network radiating from a central hub.

Code example

XAML

<charts:RadialTreeChart Name="RadialTreeChartSample" Title="Taxonomy" Height="400"
                          ItemsSource="{Binding RadialTreeData}"
                          LabelPath="Name"
                          ChildrenPath="Children" />

Data model (C#)

public class TreeNode
{
    public string Name { get; set; } = string.Empty;
    public ObservableCollection<TreeNode> Children { get; set; } = new();
}

public ObservableCollection<TreeNode> RadialTreeData { get; } = new()
{
    new TreeNode { Name = "Animals", Children = {
        new TreeNode { Name = "Mammals", Children = {
            new TreeNode { Name = "Dog" },
            new TreeNode { Name = "Cat" }
        }},
        new TreeNode { Name = "Birds", Children = {
            new TreeNode { Name = "Eagle" }
        }},
        new TreeNode { Name = "Fish", Children = {
            new TreeNode { Name = "Salmon" }
        }}
    }}
};

Common properties

Property	Description	Default
ItemsSource	The central root nodes.	null
ValuePath	Path to the value associated with each node.	null
LabelPath	Path to the text labels on the nodes.	null
ChildrenPath	Path to the collection of outer nodes.	null
NodeSize	Radius used to draw the node points.	8.0
LevelSpacing	Preferred spacing between radial levels.	60.0
