Donut chart

info

Charts are available with Avalonia Pro.

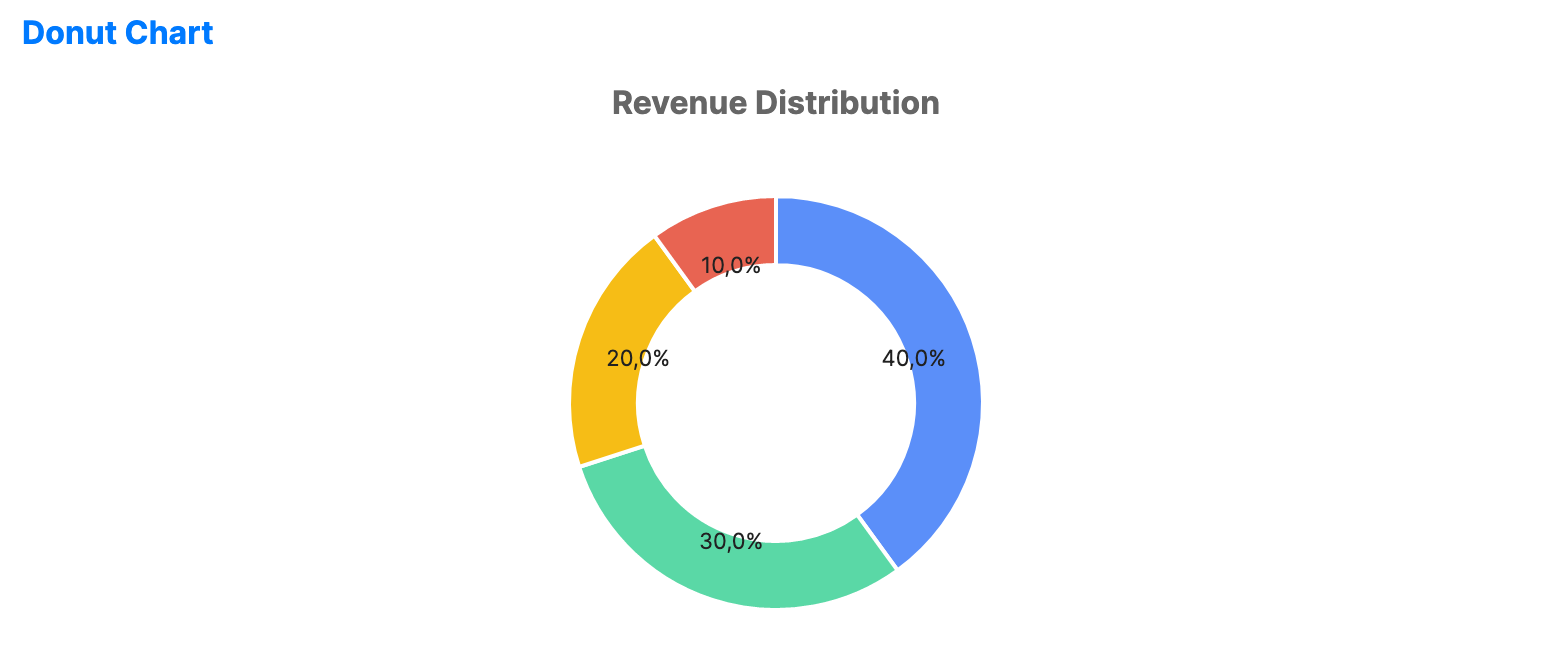

A donut chart is a variation of the pie chart that uses a non-zero InnerRadiusFactor. This design lets you reserve the center for a summary value or label.

When to use

• Proportional comparison: Similar to a pie chart, but with more room for labels or totals in the center.
• Summary views: Where the central space can be used to display the total sum or a key metric.
• Minimalist dashboards: Highly effective for simple part-to-whole visualizations with few categories.

Code example

XAML

<charts:PieChart Name="DonutChartSample" IsTooltipEnabled="True" Title="Revenue Distribution" Height="300" InnerRadiusFactor="0.6">
                         <charts:PieChart.Series>
                            <charts:PieSeries ItemsSource="{Binding DonutChartData}" LabelPath="Value" />
                        </charts:PieChart.Series>
                    </charts:PieChart>

Data model (C#)

public ObservableCollection<double> DonutChartData { get; } = new()
{
    40, 30, 20, 10
};

There is no specific DonutChart control. Use PieChart and set InnerRadiusFactor to a value greater than 0.0.

Common properties

PieChart

Property	Description	Default
InnerRadiusFactor	The size of the center hole, from 0.0 to 1.0.	0.0
Title	Chart title displayed above the donut.	null
Palette	Custom collection of brushes for the slices.	Theme-dependent

PieSeries

Property	Description	Default
ItemsSource	The collection of data slices.	null
LabelPath	Path to the text to display on or near slices.	null
ValuePath	Path to the numerical value for slice sizing.	null
RadiusFactor	Outer radius factor for the series, from 0.0 to 1.0.	0.9
InnerRadiusFactor	Optional inner radius factor for the series. When null, the chart-level value is used.	null
StartAngle	Start angle in degrees for the first slice.	-90.0
ShowLabels	Whether to display labels on the slices.	true
LabelPosition	Position of slice labels, Inside or Outside.	Inside
SliceLabelFormat	Format used for slice labels.	Percentage
LabelFontSize	Font size used for slice labels.	11.0
LabelForeground	Brush used for slice labels.	null
