Markers are symbols drawn at each data point in a series. They help users locate the exact coordinates of points, especially on line or spline charts where paths might be dense.

For Cartesian line-family series such as LineSeries, SplineSeries, and StepLineSeries, markers are opt-in. Set ShowMarkers="True" before marker styling properties such as MarkerSize, MarkerFill, or MarkerStroke have a visible effect.

When to use

• Discrete data: Emphasizing that lines represent individual measured points.
• Low-density charts: Making points more clickable for tooltips or selection.
• Categorical distinction: Using different shapes (Circle, Square, Diamond) to distinguish series.

Code example

XAML

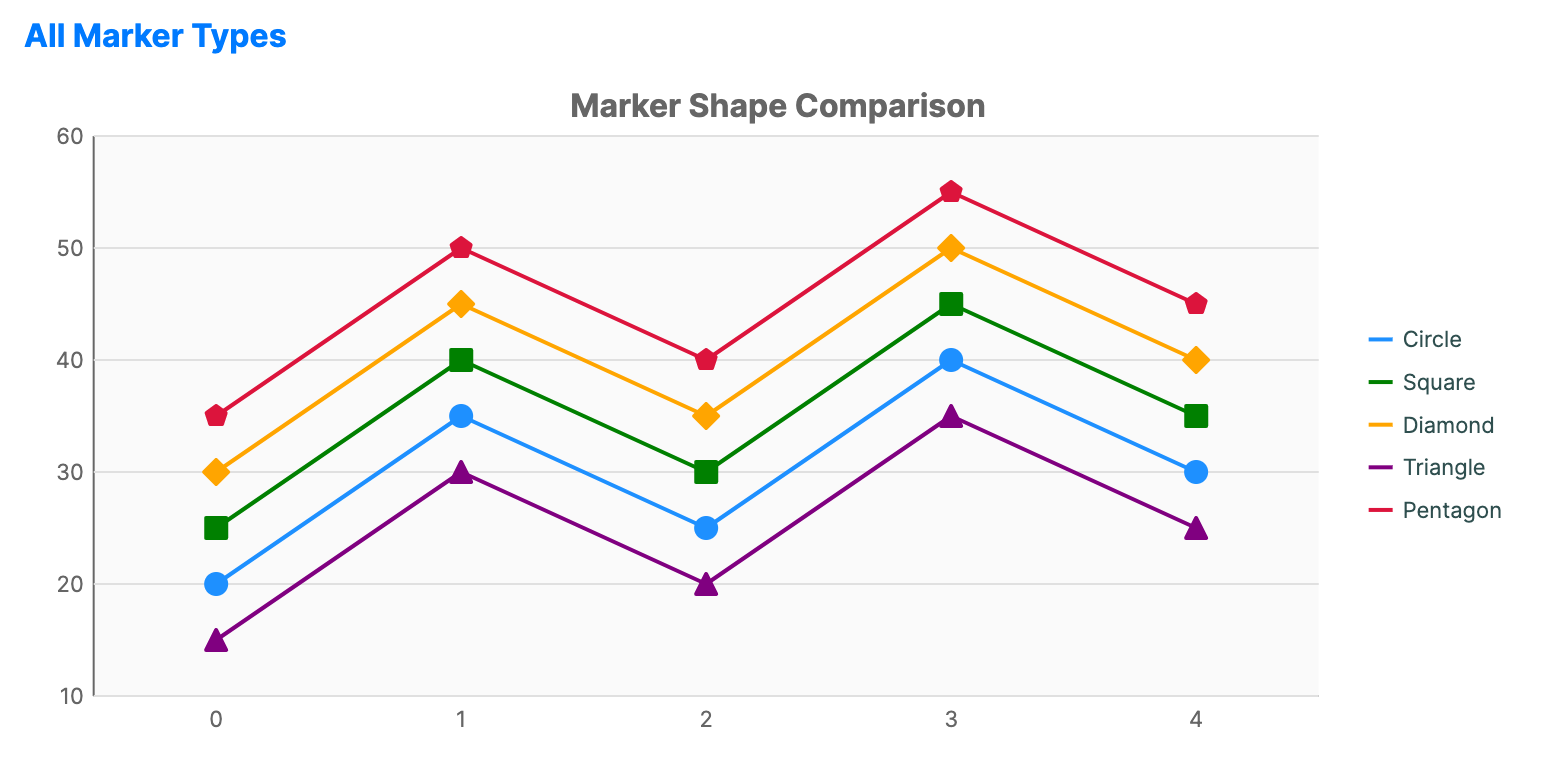

<charts:CartesianChart Name="AllMarkersChart" Title="Marker Shape Comparison" Height="320" ShowLegend="True" LegendPosition="Bottom" HorizontalAlignment="Stretch">
                        <charts:CartesianChart.Series>
                            <charts:LineSeries Title="Circle" ItemsSource="{Binding CircleMarkerData}"
                                               MarkerShape="Circle" MarkerSize="10"
                                               Stroke="DodgerBlue" MarkerFill="DodgerBlue" StrokeThickness="2"  ShowMarkers="True"/>
                            <charts:LineSeries Title="Square" ItemsSource="{Binding SquareMarkerData}"
                                               MarkerShape="Square" MarkerSize="10"
                                               Stroke="Green" MarkerFill="Green" StrokeThickness="2"  ShowMarkers="True"/>
                            <charts:LineSeries Title="Diamond" ItemsSource="{Binding DiamondMarkerData}"
                                               MarkerShape="Diamond" MarkerSize="12"
                                               Stroke="Orange" MarkerFill="Orange" StrokeThickness="2"  ShowMarkers="True"/>
                            <charts:LineSeries Title="Triangle" ItemsSource="{Binding TriangleMarkerData}"
                                               MarkerShape="Triangle" MarkerSize="10"
                                               Stroke="Purple" MarkerFill="Purple" StrokeThickness="2"  ShowMarkers="True"/>
                            <charts:LineSeries Title="Pentagon" ItemsSource="{Binding PentagonMarkerData}"
                                               MarkerShape="Pentagon" MarkerSize="10"
                                               Stroke="Crimson" MarkerFill="Crimson" StrokeThickness="2"  ShowMarkers="True"/>
                        </charts:CartesianChart.Series>
                        <charts:CartesianChart.HorizontalAxis>
                            <charts:CategoryAxis />
                        </charts:CartesianChart.HorizontalAxis>
                        <charts:CartesianChart.VerticalAxis>
                            <charts:NumericalAxis />
                        </charts:CartesianChart.VerticalAxis>
                    </charts:CartesianChart>

Data model (C#)

public ObservableCollection<int> CircleMarkerData { get; } = new() { 20, 35, 25, 40, 30 };
public ObservableCollection<int> SquareMarkerData { get; } = new() { 25, 40, 30, 45, 35 };
public ObservableCollection<int> DiamondMarkerData { get; } = new() { 30, 45, 35, 50, 40 };
public ObservableCollection<int> TriangleMarkerData { get; } = new() { 15, 30, 20, 35, 25 };
public ObservableCollection<int> PentagonMarkerData { get; } = new() { 35, 50, 40, 55, 45 };

Common properties (applied to Series)

Property	Description	Default
ShowMarkers	Global toggle for data point symbols. Line-family series default to false; some point-focused series override it to true.	Series-dependent
MarkerSize	Diameter of the marker in pixels.	Series-dependent
MarkerShape	Circle, Square, Rectangle, Diamond, Triangle, InvertedTriangle, Cross, Pentagon, VerticalLine, or HorizontalLine.	Circle
MarkerFill	Brush used to fill the marker interior.	Series color
MarkerStroke	Brush used for the marker outline.	null
MarkerStrokeThickness	Thickness of the marker outline. When NaN, the series StrokeThickness is used.	NaN
