Heikin-Ashi chart

info

Charts are available with Avalonia Pro.

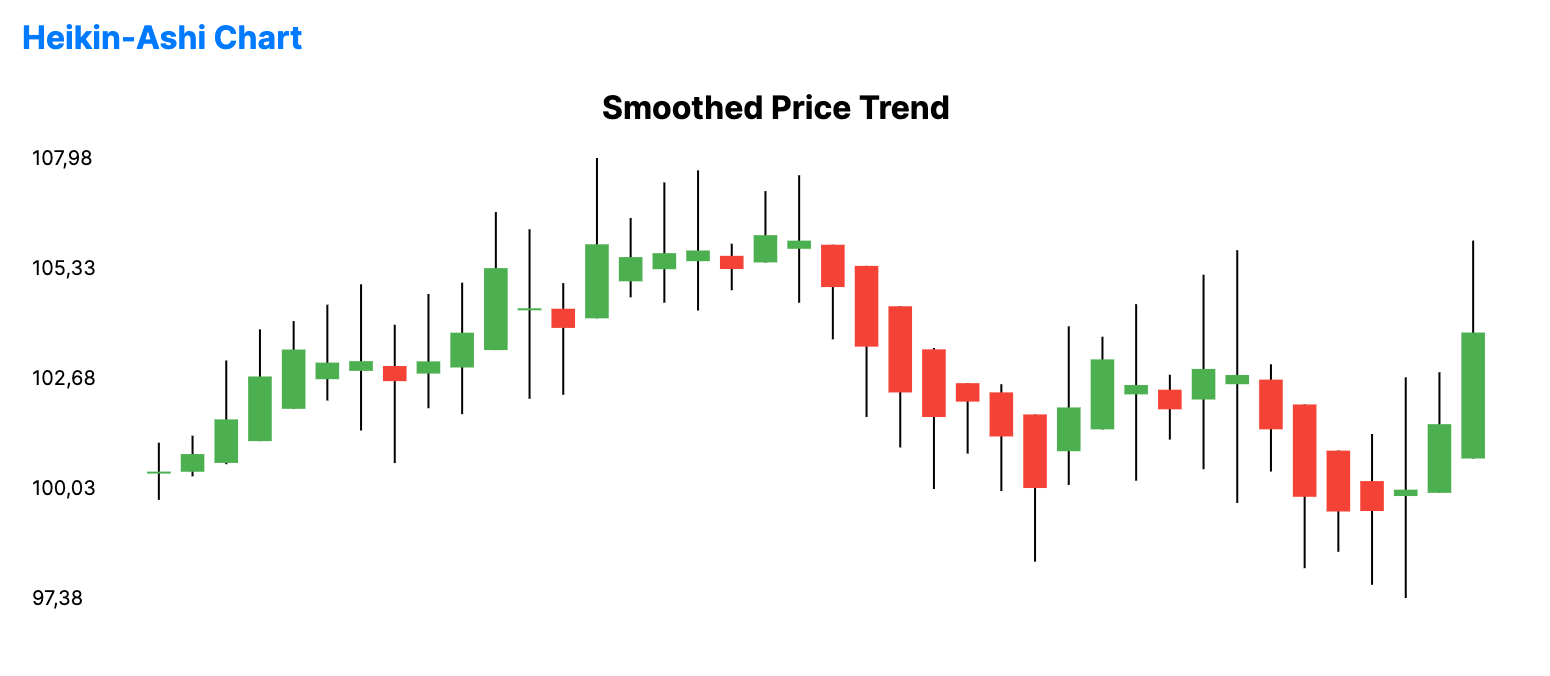

Heikin-Ashi charts are a variation of Japanese candlestick charts. They use a modified formula for open, high, low, and close values to filter out market noise and show smoothed trend direction.

When to use

• Trend identification: Finding the beginning and end of a market trend with less volatility.
• Swing trading: Identifying pullbacks and reversals in volatile markets.
• Long-term analysis: Smoothing out day-to-day price fluctuations for a broader view.

Code example

XAML

<charts:HeikinAshiChart Name="HeikinAshiChartSample" Title="Smoothed Price Trend" Height="300"
                                              ItemsSource="{Binding HeikinAshiData}"
                                              HighPath="High" LowPath="Low"
                                              OpenPath="Open" ClosePath="Close"
                                              DatePath="Date" />

Data model (C#)

using System;

public record FinancialPoint(DateTime Date, double Open, double High, double Low, double Close);

public ObservableCollection<FinancialPoint> HeikinAshiData { get; } = new(GenerateFinancialData(40));

private static IEnumerable<FinancialPoint> GenerateFinancialData(int count)
{
    var date = DateTime.Today.AddDays(-count);
    var price = 100.0;
    var random = new Random(42);

    for (var i = 0; i < count; i++)
    {
        var open = price;
        var close = open + (random.NextDouble() - 0.5) * 5;
        var high = Math.Max(open, close) + random.NextDouble() * 2;
        var low = Math.Min(open, close) - random.NextDouble() * 2;

        yield return new FinancialPoint(date.AddDays(i), open, high, low, close);
        price = close;
    }
}

Common properties

Property	Description	Default
ItemsSource	The data source of price data.	null
OpenPath	Paths of the opening price.	null
ClosePath	Path of the closing price.	null
HighPath	Path of the highest price.	null
LowPath	Path of the lowest price.	null
DatePath	Path of the date or time value associated with each item.	null
BullishBrush	Color for bullish candles.	0x4C, 0xAF, 0x50 (Green)
BearishBrush	Color for bearish candles.	0xF4, 0x43, 0x36 (Red)
CandleWidth	Width of candles as a proportion of the available slot width, from 0 to 1.	0.7
