Application Events Tool

The Events Tool provides real-time monitoring and debugging capabilities for Avalonia's routed event system. Routed events in Avalonia follow a sophisticated event handling mechanism where events can traverse up or down the visual tree. This tool helps developers track event propagation, identify event handlers, and debug event-related issues in their applications.

Visit Routed Events Avalonia documentation for more fundamental information.

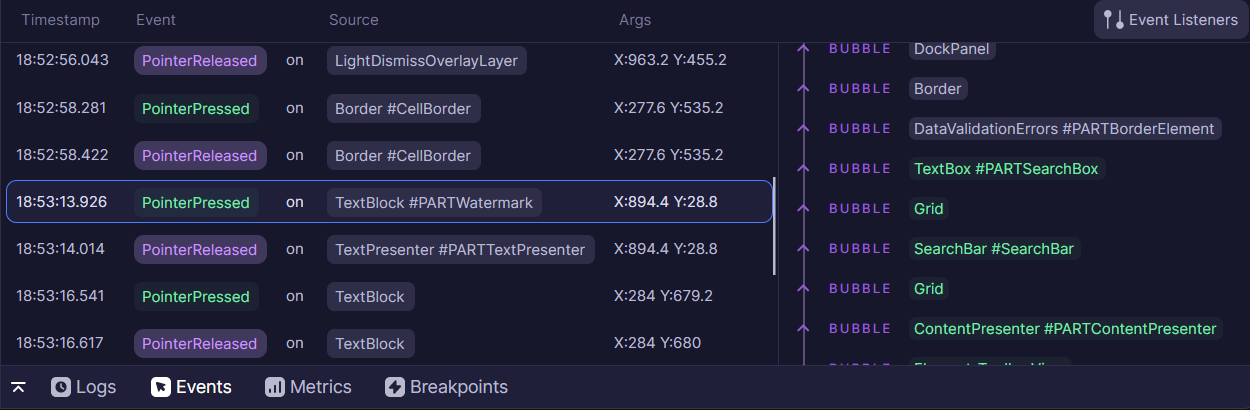

List of Raised Events

Enabling Event Listeners​

By default, Button.Click, KeyDown, KeyUp, TextInput, PointerReleased, and PointerPressed events are enabled. These defaults can be controlled by the Default Routed Events setting; see Developer Tools Settings page.

Use the "Event Listeners" flyout button to enable or disable any particular routed event or events group.

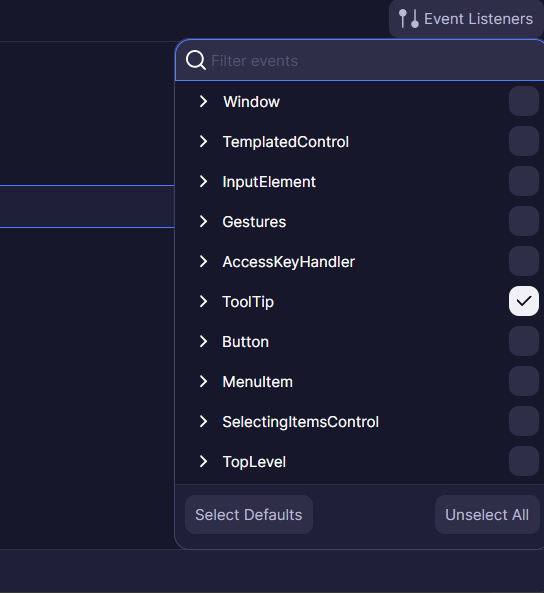

Listeners Filter Flyout

This list is gathered from statically registered routed events at the time when the tab is first opened. If an event isn't displayed in this list, it's likely because it was never referenced in the application.

In Avalonia, routed events have three possible routing strategies:

  • Tunnel strategy routes from the root (typically a window) to the source element (typically clicked or focused element).
  • Bubble strategy is the opposite and routes from the source back to the window.
  • Direct strategy only occurs when an event is raised directly on the source, without routing to any other element.

Bubble is the default strategy used in XAML and C# event handlers. The Tunnel strategy is often called Preview as it allows handling of events before the standard Bubble.

While a single raised event can go through multiple element handlers, only one will actually mark the event as handled, stopping the route.

In Developer Tools, all three strategies are color-coded. The element that has handled the event is visually distinct from the others, indicating the position where the route has stopped.

Developer Tools will still show the following element handlers, which could receive already-handled event arguments.

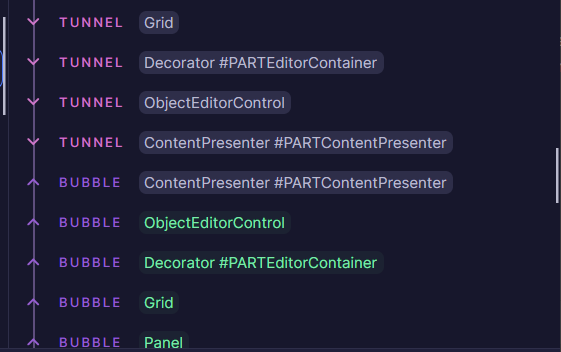

Raised Event Handlers Chain

Inspecting Event Handler Control​

Each element handler is clickable, redirecting the user to the corresponding node in the elements tree.

Note: If nothing happens when clicking on an element, it was likely already removed from the elements tree.

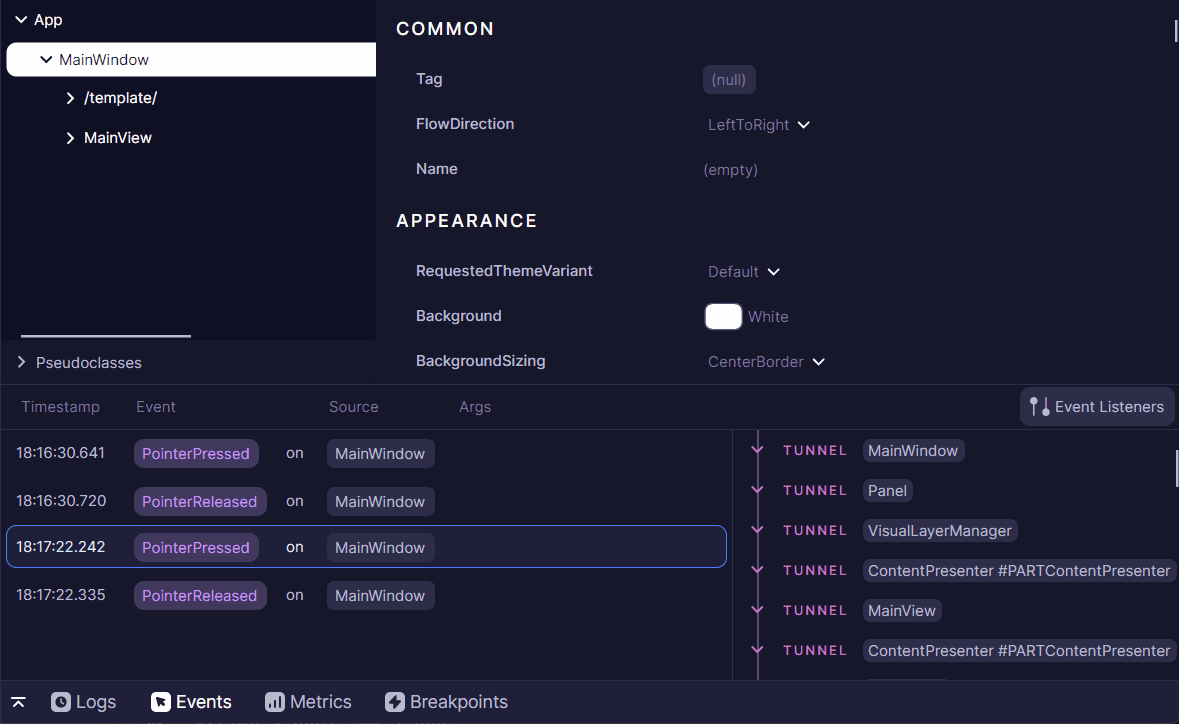

Inspect Handler
