Attaching to the Previewer

warning

Experimental.

AvaloniaVS and AvaloniaRider run previewing window in a full application process, but without real windowing subsystem.

Yet, these extensions are limited in diagnostic features, making it harder to analyze visual trees and actual control placements.

With Developer Tools running out-of-process, it is now possible to attach a previewing app to the tool.

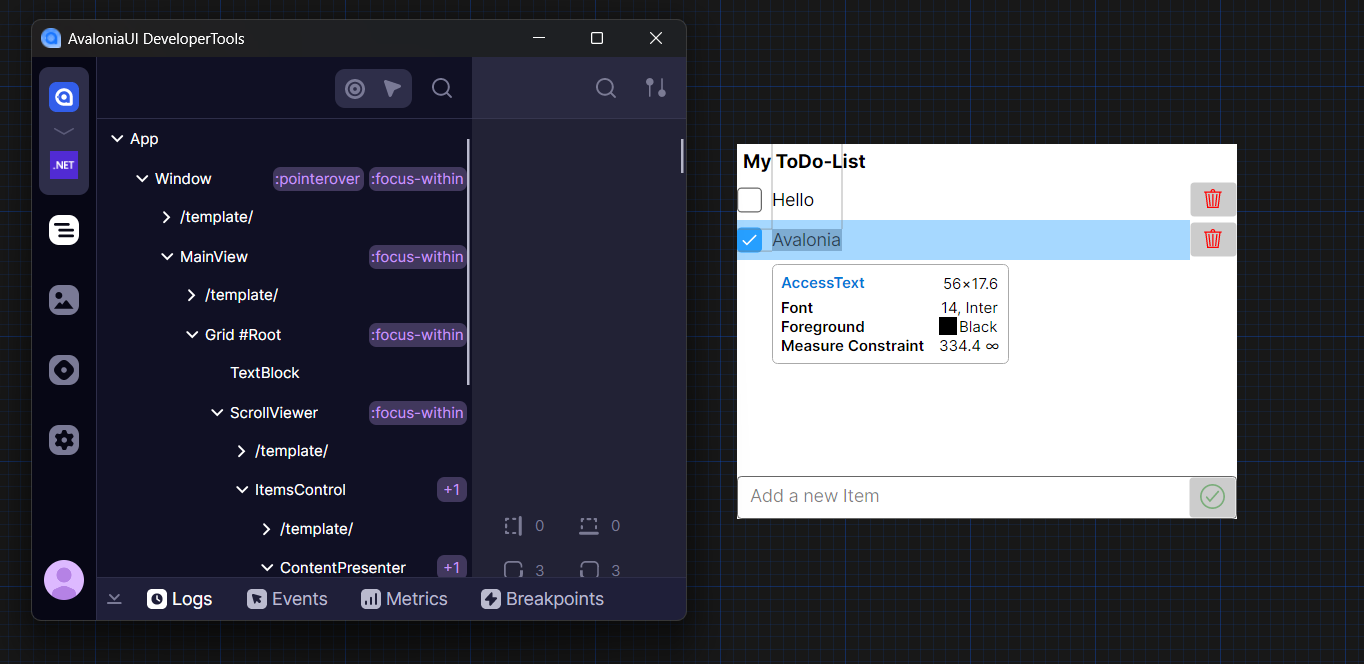

Example of DevTools app attached to the previewer process

Configuration​

Preview extensions don't support any form of keyboard input, making AutoConnectFromDesignMode the only option at the moment:

this.AttachDeveloperTools(o =>
{
    o.AutoConnectFromDesignMode = true;
});

By default, DeveloperToolsOptions.Runner is disabled in IsDesignMode. It was done to avoid unnecessary noise and processes opening each time any XAML file is opened.

Instead, like on the browser or mobile, the Developer Tools app should be opened independently.

Troubleshooting​

Shortcuts are ignored​

As mentioned above, previewer extensions don't listen for keyboard input. Instead, it's possible to use corresponding action buttons or shortcuts in the Developer Tools process itself.

Developer Tools opens way too many windows​

Developer Tools opens a tool window per connected process. If the user has multiple XAML previewer tabs, then multiple tool windows will be opened per each.
