How to: Work with ComboBox

This guide covers common ComboBox scenarios including binding to collections, creating custom item templates, working with enums, and using AutoCompleteBox for type-to-search functionality.

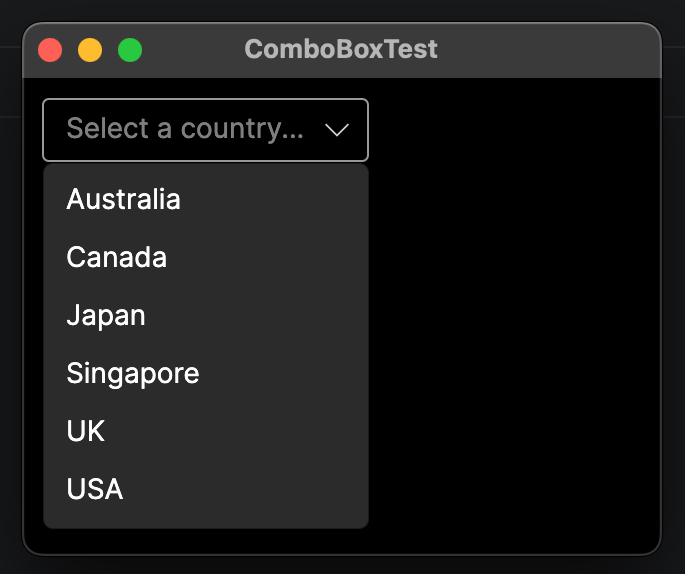

Basic binding​

To bind a ComboBox to a collection and track the selected item, set ItemsSource to your collection property and bind SelectedItem to a property on your view model. Use PlaceholderText to display a hint when nothing is selected:

<ComboBox ItemsSource="{Binding Countries}"
          SelectedItem="{Binding SelectedCountry}"
          PlaceholderText="Select a country" />
public partial class MainViewModel : ObservableObject
{
    public ObservableCollection<string> Countries { get; } = new()
    {
        "United States", "United Kingdom", "Germany", "Japan", "Australia"
    };

    [ObservableProperty]
    private string? _selectedCountry;
}
tip

Use ObservableCollection<T> instead of List<T> when you need the ComboBox to update automatically as items are added or removed at runtime.

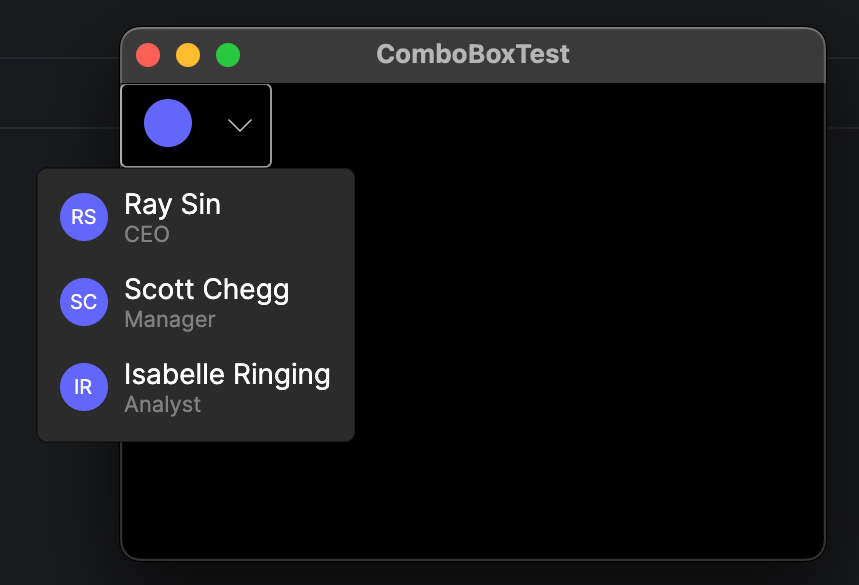

Custom item template​

When your items are complex objects, use ComboBox.ItemTemplate to control how each item appears in the dropdown. This lets you display multiple properties, icons, or any custom layout:

<ComboBox ItemsSource="{Binding Users}"
          SelectedItem="{Binding SelectedUser}"
          PlaceholderText="Select a user">
    <ComboBox.ItemTemplate>
        <DataTemplate>
            <StackPanel Orientation="Horizontal" Spacing="8">
                <Border Width="24" Height="24" CornerRadius="12"
                        Background="#6366F1">
                    <TextBlock Text="{Binding Initials}" Foreground="White"
                               HorizontalAlignment="Center"
                               VerticalAlignment="Center" FontSize="10" />
                </Border>
                <StackPanel>
                    <TextBlock Text="{Binding Name}" />
                    <TextBlock Text="{Binding Role}" FontSize="11" Foreground="Gray" />
                </StackPanel>
            </StackPanel>
        </DataTemplate>
    </ComboBox.ItemTemplate>
</ComboBox>

When you use a custom item template with complex objects, the ComboBox displays the selected item using the same template. If you want different layouts for the selected item and the dropdown items, you can use a DataTemplateSelector or apply styles that target items inside the popup.

Binding to an enum​

You can populate a ComboBox with all values of an enum by calling Enum.GetValues<T>() and exposing the result as an array:

public enum Priority { Low, Normal, High, Critical }

public partial class TaskViewModel : ObservableObject
{
    public Priority[] PriorityOptions { get; } = Enum.GetValues<Priority>();

    [ObservableProperty]
    private Priority _selectedPriority = Priority.Normal;
}
<ComboBox ItemsSource="{Binding PriorityOptions}"
          SelectedItem="{Binding SelectedPriority}" />

With display names​

By default, the ComboBox displays the raw enum member names (for example, "High" rather than "High Priority"). If you want human-readable labels, wrap each value in a record and provide an ItemTemplate:

public record PriorityOption(Priority Value, string Label);

public PriorityOption[] PriorityOptions { get; } = new[]
{
    new PriorityOption(Priority.Low, "Low Priority"),
    new PriorityOption(Priority.Normal, "Normal"),
    new PriorityOption(Priority.High, "High Priority"),
    new PriorityOption(Priority.Critical, "Critical!"),
};

[ObservableProperty]
private PriorityOption _selectedPriority;
<ComboBox ItemsSource="{Binding PriorityOptions}"
          SelectedItem="{Binding SelectedPriority}">
    <ComboBox.ItemTemplate>
        <DataTemplate>
            <TextBlock Text="{Binding Label}" />
        </DataTemplate>
    </ComboBox.ItemTemplate>
</ComboBox>

Binding to SelectedValue​

When you need just a single property of the selected item rather than the whole object, use SelectedValueBinding to specify which property to extract and SelectedValue to bind the result. This is useful when your items are complex objects but you only need to store an ID or code:

<ComboBox ItemsSource="{Binding Countries}"
          SelectedValueBinding="{Binding Code}"
          SelectedValue="{Binding SelectedCountryCode}">
    <ComboBox.ItemTemplate>
        <DataTemplate>
            <TextBlock Text="{Binding Name}" />
        </DataTemplate>
    </ComboBox.ItemTemplate>
</ComboBox>

Static items in XAML​

For a small fixed set of options that do not change at runtime, you can define items directly in XAML using ComboBoxItem elements. Set SelectedIndex to pre-select an item by position:

<ComboBox SelectedIndex="0">
    <ComboBoxItem Content="Small" />
    <ComboBoxItem Content="Medium" />
    <ComboBoxItem Content="Large" />
</ComboBox>
tip

Static items work well for settings screens or forms where the options are known at design time. For dynamic or data-driven options, use ItemsSource binding instead.

Editable combo box (AutoCompleteBox)​

Avalonia's ComboBox does not have a built-in editable mode. If you need type-to-search functionality where the user can filter options by typing, use AutoCompleteBox instead:

<AutoCompleteBox ItemsSource="{Binding AllCities}"
                 Text="{Binding SearchText}"
                 PlaceholderText="Search for a city..."
                 FilterMode="Contains"
                 MinimumPrefixLength="1" />

AutoCompleteBox filters the list as the user types. You can choose from several built-in filter modes (StartsWith, Contains, ContainsCaseSensitive, and others), or provide a custom filter:

<AutoCompleteBox ItemsSource="{Binding Users}"
                 FilterMode="Custom"
                 TextFilter="{Binding UserFilter}"
                 PlaceholderText="Search users...">
    <AutoCompleteBox.ItemTemplate>
        <DataTemplate>
            <TextBlock Text="{Binding Name}" />
        </DataTemplate>
    </AutoCompleteBox.ItemTemplate>
</AutoCompleteBox>

Styling​

Custom dropdown width​

If the dropdown panel is too narrow for your content, you can set a minimum width on the Popup inside the ComboBox template:

<Style Selector="ComboBox /template/ Popup">
    <Setter Property="MinWidth" Value="300" />
</Style>

Custom placeholder style​

You can change the appearance of the placeholder text that appears when no item is selected:

<Style Selector="ComboBox:not(:selected) /template/ ContentControl#PlaceholderTextBlock">
    <Setter Property="Foreground" Value="Gray" />
</Style>

See also​
