Customizing the toolbar

By default, RichTextEditor includes a primary toolbar, a selection mini-bar, and a right-click context menu. Each of these toolbars is built from the same basic system and can be customized independently. You can swap layouts, add your own tools, fine-tune the overflow menu, re-theme buttons, and more. This guide takes you through your customization options, from most common to most advanced.

info

This control is available as part of Avalonia Pro or higher.

note

Migrating from earlier releases? EditorToolbar and ToolbarGroup no longer derive from ItemsControl. Use the Tools property (typed AvaloniaList<EditorTool> and marked as the [Content] property) instead of Items/ItemsSource/ItemsPanel, and re-template with a Panel named PART_ItemsHost to change the layout. Action-bearing properties (Action, Icon, ToolTipText) moved from EditorTool to a new abstract ActionTool base — concrete tools like ButtonTool/ToggleTool still expose them. See the migration table at the end of Toolbar and Selection Flyout.

How the toolbar is assembled

• EditorTool: the abstract base for any item hosted inside an EditorToolbar or ToolbarGroup. It carries target-area visibility, overflow metadata, and editor-host discovery.
• ActionTool: the abstract base for tools that bind to an IEditorAction. Adds Action, Icon, and ToolTipText, and synchronizes IsEnabled with Action.CanExecute(host). Most concrete tools (button, toggle, combobox, flyout) derive from this.
• ToolbarGroup: itself an EditorTool. Hosts its own strongly-typed Tools collection of child tools. Groups share visibility status, i.e., they collapse together into the overflow menu if there is insufficient space. Nested ToolbarGroup instances are not supported.
• EditorToolbar: a TemplatedControl that exposes a strongly-typed Tools collection (AvaloniaList<EditorTool>) marked as the [Content] property. Wires items to the editor, propagates ActiveTargetAreas, and runs the overflow-collapse layout pass. Items are inserted into a Panel named PART_ItemsHost in the control template.

The primary toolbar lives inside RichTextEditor's control template as a Border named PART_ToolbarContainer that hosts an EditorToolbar; visibility is controlled by RichTextEditor.ShowToolbar. The selection mini-bar (EditorSelectionFlyout) and the context menu (EditorContextMenu) are hosted by flyout controls and are configured separately.

Default toolbar

The built-in EditorToolbar, populated via RichTextEditor.Toolbar in the editor's default control theme, contains the following tools, appearing in this order and sorted into these groups.

1. History — Undo, Redo
2. Clipboard — Cut, Copy, Paste, Select All
3. Font — Font family, Font size, Foreground color, Background color
4. Inline formatting — Bold, Italic, Underline, Strikethrough, Superscript, Subscript, Link
5. Lists — Bullet list, Numbered list
6. Tables — Insert table
7. Block layout — Text alignment, Block border
8. Overflow — "..." button that presents collapsed tools when clicked

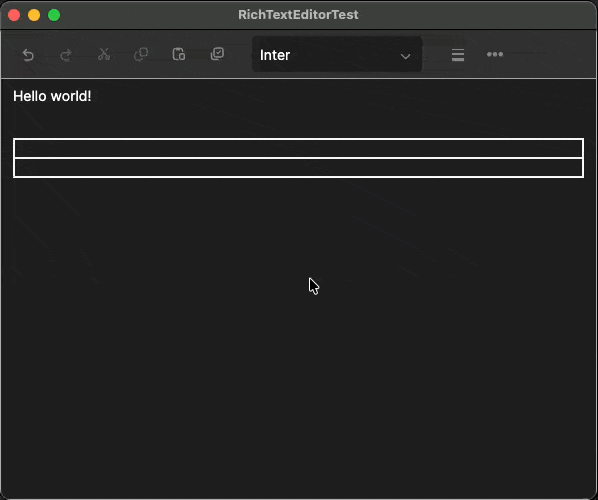

Most tools are context-sensitive, meaning they disappear automatically when out of context, e.g., list tools are hidden outside lists, table tools are hidden outside tables. This is done by declaring the ToolbarTargetAreas of each tool or group.

Replacing the default toolbar

There are two ways to customize the default toolbar, depending on your UI requirements.

Option 1: Set RichTextEditor.Toolbar

Assign a custom EditorToolbar to the Toolbar setter on RichTextEditor. Place this in the editor's control theme so it applies to every RichTextEditor in your application:

<Application.Resources>
  <ControlTheme x:Key="{x:Type RichTextEditor}"
                TargetType="RichTextEditor"
                BasedOn="{StaticResource {x:Type RichTextEditor}}">
    <Setter Property="Toolbar">
      <Template>
        <EditorToolbar>
          <ToolbarGroup>
            <ButtonTool Action="{x:Static EditorActions.Undo}" />
            <ButtonTool Action="{x:Static EditorActions.Redo}" />
          </ToolbarGroup>

          <SeparatorTool />

          <ToolbarGroup Classes="AreaAware" TargetAreas="Text">
            <ToggleTool Action="{x:Static EditorActions.Bold}" />
            <ToggleTool Action="{x:Static EditorActions.Italic}" />
            <ToggleTool Action="{x:Static EditorActions.Underline}" />
          </ToolbarGroup>

          <OverflowTool />
        </EditorToolbar>
      </Template>
    </Setter>
  </ControlTheme>
</Application.Resources>

Option 2: Build a toolbar separately from the editor

If you need the toolbar to live somewhere other than above the editor (e.g., in a side panel, in a window chrome, shared across multiple editors), you can hide the built-in toolbar and place an EditorToolbar wherever you want.

To do so, define the standalone EditorToolbar in XAML and attach it to the editor in the corresponding code-behind.

XAML

<DockPanel>
  <EditorToolbar x:Name="MyToolbar" DockPanel.Dock="Top">
    <ToolbarGroup>
      <ButtonTool Action="{x:Static EditorActions.Undo}" />
      <ButtonTool Action="{x:Static EditorActions.Redo}" />
    </ToolbarGroup>
    <ToolbarGroup Classes="AreaAware" TargetAreas="Text">
      <ToggleTool Action="{x:Static EditorActions.Bold}" />
      <ToggleTool Action="{x:Static EditorActions.Italic}" />
    </ToolbarGroup>
  </EditorToolbar>

  <RichTextEditor x:Name="MyEditor" ShowToolbar="False" />
</DockPanel>

Code-behind

public MainWindow()
{
    InitializeComponent();
    MyToolbar.Editor = MyEditor;
}

tip

You can wire one EditorToolbar to different editors at runtime by reassigning EditorToolbar.Editor. This is a common pattern for tabbed document interfaces where a single shared toolbar tracks the active tab.

Minimalist example

A minimal toolbar with only Undo/Redo and Bold/Italic. Note that tool icons are set in a separate tag from the tool action.

<ControlTheme x:Key="{x:Type RichTextEditor}"
              TargetType="RichTextEditor"
              BasedOn="{StaticResource {x:Type RichTextEditor}}">
  <Setter Property="Toolbar">
    <Template>
      <EditorToolbar Margin="4">

        <ButtonTool Action="{x:Static EditorActions.Undo}">
            <ButtonTool.Icon>
                <ContentPresenter ContentTemplate="{StaticResource EditorIcons.Undo}" />
            </ButtonTool.Icon>
        </ButtonTool>

        <ButtonTool Action="{x:Static EditorActions.Redo}">
            <ButtonTool.Icon>
                <ContentPresenter ContentTemplate="{StaticResource EditorIcons.Redo}" />
            </ButtonTool.Icon>
        </ButtonTool>

        <SeparatorTool />

        <ToggleTool Action="{x:Static EditorActions.Bold}">
            <ToggleTool.Icon>
                <ContentPresenter ContentTemplate="{StaticResource EditorIcons.Bold}" />
            </ToggleTool.Icon>
        </ToggleTool>

        <ToggleTool Action="{x:Static EditorActions.Italic}" >
            <ToggleTool.Icon>
                <ContentPresenter ContentTemplate="{StaticResource EditorIcons.Italic}" />
            </ToggleTool.Icon>
        </ToggleTool>

      </EditorToolbar>
    </Template>
  </Setter>
</ControlTheme>

EditorTool types

Components on the toolbar, such as buttons, toggles, comboboxes, etc., are subclasses of EditorTool. The hierarchy is split in two:

• EditorTool itself is the abstract base for any toolbar item. It handles target-area visibility, overflow metadata, focus-return helpers, and editor-host discovery. SeparatorTool and ToolbarGroup derive from it directly because they don't bind to an action.
• ActionTool is the abstract intermediate that adds action-bearing properties (Action, Icon, ToolTipText) and keeps state in sync with the editor. Most concrete widgets — buttons, toggles, comboboxes, flyouts — derive from it.

In practice, you'll rarely need to use either base class directly. The built-in subclasses listed below have been designed to meet most use-cases.

Built-in subclasses

Class	Base	Widget	Typical use
ButtonTool	ActionTool	Button	One-shot commands, e.g., Undo, Cut, Paste.
ToggleTool	ActionTool	Toggle button	Formatting, e.g., Bold, Italic.
ListToggleTool	ToggleTool	Split toggle button	List toggles (bullet/numbered) that also reflect the active marker style.
ComboBoxTool	ActionTool	Combobox	Selection from a list, e.g., font family, font size.
ColorPickerTool	ColorTool	Split button + Avalonia ColorPicker flyout	Pick an arbitrary color, e.g., foreground color, background color.
ColorSwatchTool	ColorTool	Split button + swatch palette flyout	Pick from a fixed palette.
AlignmentFlyoutTool	ActionTool	Button with flyout	Text alignment—Left, Right, Center, Justify.
HyperlinkFlyoutTool	ActionTool	Button with flyout	Insert/edit hyperlinks.
TablePickerTool	ActionTool	Grid picker	Insert a table by sizing a grid.
BorderFlyoutTool	ActionTool	Button with flyout	Block border configuration, e.g., sides, thickness, color.
OverflowTool	ActionTool	"..." button with flyout	Menu flyout that presents collapsed tools.
SeparatorTool	EditorTool	Vertical rule	Visual divider.

Bullet- and numbered-list marker styles are exposed in the default theme via ButtonTool instances paired with a PropertyMenuItem overflow representation that drives EditorActions.BulletMarkerStyle / EditorActions.NumberedMarkerStyle — there is no dedicated BulletMarkerFlyoutTool / NumberedMarkerFlyoutTool.

Core properties

EditorTool exposes the following on every toolbar item:

Property	Type	Description
TargetAreas	ToolbarTargetAreas	Contexts in which this tool should appear. See ToolbarTargetAreas.
OverflowMenuItem	MenuItem?	Menu item shown when this tool is collapsed into the overflow menu. null means the tool cannot be collapsed.
CanCollapseOverride	bool?	Explicit override for overflow collapse.

ActionTool adds the action-bearing surface (inherited by every interactive tool):

Property	Type	Description
Action	IEditorAction?	The action this tool executes.
Icon	object?	Display icon for the tool.
ToolTipText	string?	Text displayed as tooltip on hover. Defaults to Action.DisplayName if unset.

XAML usage

<!-- One-shot command -->
<ButtonTool Action="{x:Static EditorActions.Undo}">
  <ButtonTool.Icon>
    <ContentPresenter ContentTemplate="{StaticResource EditorIcons.Undo}" />
  </ButtonTool.Icon>
</ButtonTool>

<!-- Formatting toggle -->
<ToggleTool Action="{x:Static EditorActions.Bold}">
  <ToggleTool.Icon>
    <ContentPresenter ContentTemplate="{StaticResource EditorIcons.Bold}" />
  </ToggleTool.Icon>
</ToggleTool>

<!-- Property combo with custom item template -->
<ComboBoxTool Action="{x:Static EditorActions.FontFamily}" Width="170">
  <ComboBoxTool.ItemTemplate>
    <DataTemplate DataType="FontFamily">
      <TextBlock Text="{Binding Name}" FontFamily="{Binding}" />
    </DataTemplate>
  </ComboBoxTool.ItemTemplate>
</ComboBoxTool>

Creating a custom tool

You can derive a custom implementation if you need a widget that isn't covered by the built-in subclasses. Pick the base class that matches your use case:

• EditorTool — for passive widgets (status displays, decorative chips) that don't bind to an action. Override OnApplyTemplate for template-part lookup and OnEditorHostAttached to react when an editor host becomes available.
• ActionTool — for interactive tools that execute an IEditorAction. You inherit Action, Icon, ToolTipText, and an UpdateState() virtual that runs whenever the selection/content/document changes.

In both cases:

1. Expose a control template that renders your widget.
2. Override OnApplyTemplate to get references to template parts.
3. For ActionTool, override UpdateState to refresh extra state (e.g., a custom badge). For EditorTool, hook OnEditorHostAttached and your own event subscriptions.
4. Inside handlers, call EnsureEditorFocus() before executing an action so the caret returns to the editor.

Example: Word count tool

The word count display is a passive widget — it doesn't execute an action — so it derives from EditorTool directly.

The implementation counts words by walking the document's DocumentSnapshot. Enumerating Run nodes and treating block boundaries and line breaks as word separators avoids allocating a full plain-text string and avoids merging the last word of one paragraph with the first word of the next.

C#

using Avalonia.Controls;
using Avalonia.Controls.Primitives;
using Avalonia.Controls.Documents.TextModel;
using Avalonia.Controls.Documents.Serialization.Snapshot;

public class WordCountTool : EditorTool
{
    private TextBlock? _countText;

    protected override void OnApplyTemplate(TemplateAppliedEventArgs e)
    {
        base.OnApplyTemplate(e);
        _countText = e.NameScope.Find<TextBlock>("PART_Count");
        Refresh();
    }

    protected override void OnEditorHostAttached()
    {
        base.OnEditorHostAttached();
        Refresh();
    }

    protected override void UpdateState()
    {
        base.UpdateState();
        Refresh();
    }

    private void Refresh()
    {
        if (_countText is null) return;

        var doc = EditorHost?.TextDocument;
        if (doc is null)
        {
            _countText.Text = "0 words";
            return;
        }

        var snapshot = doc.CreateSnapshot();
        int words = CountWords(snapshot);
        _countText.Text = $"{words} word{(words == 1 ? "" : "s")}";
    }

    private static int CountWords(DocumentSnapshot snapshot)
    {
        int count = 0;
        bool inWord = false;

        foreach (var node in snapshot.EnumerateNodes())
        {
            var kind = node.Kind;
            if (kind == TextDocumentNodeKind.Run)
            {
                int remaining = node.Length;
                int pos = node.StartOffset;
                while (remaining > 0)
                {
                    var chunk = snapshot.GetTextMemory(pos, remaining);
                    if (chunk.IsEmpty) break;

                    foreach (char c in chunk.Span)
                    {
                        if (char.IsWhiteSpace(c)) inWord = false;
                        else if (!inWord) { inWord = true; count++; }
                    }

                    pos += chunk.Length;
                    remaining -= chunk.Length;
                }
            }
            else if (kind == TextDocumentNodeKind.LineBreak
                || (kind.Flags & NodeKindFlags.Block) != 0)
            {
                // Block boundary — never merge the last word of one paragraph
                // with the first word of the next.
                inWord = false;
            }
        }

        return count;
    }
}

XAML control theme

<ControlTheme x:Key="{x:Type local:WordCountTool}" TargetType="local:WordCountTool">
  <Setter Property="Template">
    <ControlTemplate>
      <Border Padding="8,4"
              MinWidth="72"
              VerticalAlignment="Center">
        <TextBlock Name="PART_Count"
                   Classes="Caption"
                   Foreground="{DynamicResource TextControlForeground}"
                   VerticalAlignment="Center" />
      </Border>
    </ControlTemplate>
  </Setter>
</ControlTheme>

Usage

<EditorToolbar>
  <!-- ...other groups... -->
  <SeparatorTool />
  <local:WordCountTool />
</EditorToolbar>

Editor actions

Every tool binds to an IEditorAction supplied by the static EditorActions class. The action tells the tool how to execute the command, when it is available, and (for toggles and property actions) what state to display. Bind from XAML with {x:Static EditorActions.<Name>}, or invoke an action directly from code:

if (EditorActions.Bold.CanExecute(editorHost))
    EditorActions.Bold.Execute(editorHost);

// Clipboard actions are asynchronous
await EditorActions.Paste.ExecuteAsync(editorHost);

// Property actions get and set typed values
EditorActions.FontSize.SetValue(editorHost, 16.0);
var current = EditorActions.FontSize.GetValue(editorHost);

The following actions are built in.

Edit operations

Action	Gesture	Description
Undo	Ctrl+Z	Undo the last operation.
Redo	Ctrl+Y	Redo the last undone operation.
Cut	Ctrl+X	Cut the current selection to the clipboard.
Copy	Ctrl+C	Copy the current selection to the clipboard.
Paste	Ctrl+V	Paste clipboard contents at the caret.
SelectAll	Ctrl+A	Select all content.

Text formatting

Action	Gesture	Description
Bold	Ctrl+B	Toggle bold.
Italic	Ctrl+I	Toggle italic.
Underline	Ctrl+U	Toggle underline.
Strikethrough	Ctrl+-	Toggle strikethrough.
Superscript	Ctrl+Shift++	Toggle superscript baseline alignment.
Subscript	Ctrl++	Toggle subscript baseline alignment.
FontFamily	N/A	Get or set the font family.
FontSize	N/A	Get or set the font size.

Colors

Action	Description
ForegroundColor	Get or set the text foreground color.
BackgroundColor	Get or set the text background (highlight) color.

Block alignment

Action	Description
AlignLeft	Left-align the blocks.
AlignCenter	Center-align the blocks.
AlignRight	Right-align the blocks.
AlignJustify	Justify the blocks.

Block spacing and styling

Action	Description
LineHeight	Get or set block line height.
Margin	Get or set block margin. Uniform on all sides.
Padding	Get or set block padding. Uniform on all sides
BlockBackground	Get or set block background color.
BorderThickness	Get or set block border thickness.
BorderBrush	Get or set block border color.
BlockBorder	Toggle block border on or off.

Lists

Action	Description
ToggleBulletList	Wrap or unwrap as an unordered list.
ToggleNumberedList	Wrap or unwrap as an ordered list.
BulletMarkerStyle	Set the bullet marker style (e.g., Disc, Circle, Square).
NumberedMarkerStyle	Set the numbered marker style (e.g., Decimal, LowerLatin, UpperRoman).

Tables

Action	Description
InsertTable	Insert a table at the caret. Defaults to 3×3.
InsertRowBefore	Insert a row above the current row.
InsertRowAfter	Insert a row below the current row.
DeleteRow	Delete the current row.
InsertColumnBefore	Insert a column to the left of the current column.
InsertColumnAfter	Insert a column to the right of the current column.
DeleteColumn	Delete the current column.
DeleteTable	Delete the entire table.

Lookup by ID

Action IDs follow the pattern "Category.Name" (e.g., "Format.Bold", "Table.InsertRowAfter"). Use GetById to resolve an action at runtime.

var action = EditorActions.GetById("Format.Bold");
action?.Execute(editorHost);

// Enumerate every built-in action
foreach (var a in EditorActions.All)
    Console.WriteLine($"{a.Id} — {a.DisplayName}");

Springload behavior

When the selection is empty, toggle and property actions set a springload, meaning the formatting applies to the next character typed. This matches the behavior users expect from common word processors.

ToolbarGroup

ToolbarGroup groups a set of related tools to share collective visibility. If the group's TargetAreas don't match the current caret context, the entire group is hidden. Additionally, the entire group overflows together if the layout changes.

Applying the AreaAware class

ToolbarGroup does not react to the editor's active context by default. To enable contextual awareness, add the AreaAware class. If unset, AreaAware defaults to All, and the group is always visible.

<!-- Text formatting group: Only visible when editing text -->
<ToolbarGroup Classes="AreaAware" TargetAreas="Text">
  <ToggleTool Action="{x:Static EditorActions.Bold}" />
  <ToggleTool Action="{x:Static EditorActions.Italic}" />
  <ToggleTool Action="{x:Static EditorActions.Underline}" />
</ToolbarGroup>

<!-- Table actions group: Only visible inside a table -->
<ToolbarGroup Classes="AreaAware" TargetAreas="Table">
  <ButtonTool Action="{x:Static EditorActions.InsertRowAfter}" />
  <ButtonTool Action="{x:Static EditorActions.DeleteRow}" />
</ToolbarGroup>

<!-- Always visible -->
<ToolbarGroup>
  <ButtonTool Action="{x:Static EditorActions.Undo}" />
  <ButtonTool Action="{x:Static EditorActions.Redo}" />
</ToolbarGroup>

ToolbarTargetAreas

ToolbarTargetAreas is a [Flags] enum describing the editing contexts in which a tool or group should be visible. EditorToolbar detects the active context on every selection change and propagates them to AreaAware children.

Flag	Caret context
Text	The caret is in any text-editable position.
Block	The caret is in a block-level context.
Table	The caret is in a table.
List	The caret is in a list.
All	Always visible. (Default)

If required, you can combine ToolbarTargetAreas to make a tool visible in multiple contexts.

<ToolbarGroup Classes="AreaAware" TargetAreas="Text,List">

Managing the overflow menu

The overflow menu is the "..." button at the end of the toolbar. When the toolbar runs out of horizontal space, EditorToolbar collapses tools into this menu, starting from right to left by default.

Rules for what collapses

CanCollapseOverride	OverflowMenuItem	Result
null	set	Collapsible (default)
null	null	Not collapsible
true	set	Collapsible
true	null	Not collapsible (no menu representation)
false	set	Not collapsible (pinned)
false	null	Not collapsible

Declaring overflow representations

Each collapsible tool must have its own OverflowMenuItem. In most cases, the menu item can be a simple EditorMenuItem.

<!-- Collapses into a simple menu item with the same icon -->
<ButtonTool Action="{x:Static EditorActions.Cut}">
  <ButtonTool.Icon>
    <ContentPresenter ContentTemplate="{StaticResource EditorIcons.Cut}" />
  </ButtonTool.Icon>
  <ButtonTool.OverflowMenuItem>
    <EditorMenuItem Action="{x:Static EditorActions.Cut}">
      <EditorMenuItem.Icon>
        <ContentPresenter ContentTemplate="{StaticResource EditorIcons.Cut}" />
      </EditorMenuItem.Icon>
    </EditorMenuItem>
  </ButtonTool.OverflowMenuItem>
</ButtonTool>

Overflow for specialized tools

The following specialized subclasses of EditorMenuItem are available for tools that may not work well as plain menu items in an overflow menu.

Source tool	Overflow item	Behavior
ComboBoxTool (fonts)	FontFamilyMenuItem	Submenu of fonts, each rendered in its own typeface.
ComboBoxTool (generic)	PropertyMenuItem	Submenu of values auto-populated from the action.
ColorPickerTool / ColorSwatchTool	ColorMenuItem	Submenu with color swatches and optional "No Color".
AlignmentFlyoutTool	TextAlignmentMenuItem	Submenu of alignment options.

Examples

<!-- Font selector submenu -->
<ComboBoxTool Action="{x:Static EditorActions.FontFamily}" Width="170">
  <ComboBoxTool.OverflowMenuItem>
    <FontFamilyMenuItem Action="{x:Static EditorActions.FontFamily}" />
  </ComboBoxTool.OverflowMenuItem>
</ComboBoxTool>

<!-- Color picker submenu -->
<ColorPickerTool Action="{x:Static EditorActions.ForegroundColor}"
                       ToolTipText="Text color">
  <ColorPickerTool.OverflowMenuItem>
    <ColorMenuItem Action="{x:Static EditorActions.ForegroundColor}"
                         Header="Text color" />
  </ColorPickerTool.OverflowMenuItem>
</ColorPickerTool>

<!-- Text alignment submenu -->
<AlignmentFlyoutTool ToolTipText="Text alignment">
  <AlignmentFlyoutTool.OverflowMenuItem>
    <TextAlignmentMenuItem Header="Text alignment" />
  </AlignmentFlyoutTool.OverflowMenuItem>
</AlignmentFlyoutTool>

Pinning important tools

To guarantee a tool always stays in the toolbar, even when horizontal space is tight, omit OverflowMenuItem. Undo and Redo are pinned this way in the default toolbar. Use CanCollapseOverride="False" only when you want to keep an overflow definition for conditional toggling.

<!-- Undo can never be collapsed -->
<ButtonTool Action="{x:Static EditorActions.Undo}">
  <ButtonTool.Icon>
    <ContentPresenter ContentTemplate="{StaticResource EditorIcons.Undo}" />
  </ButtonTool.Icon>
</ButtonTool>

Default mini-bar

When the user selects text, a compact floating toolbar appears near the selection. This is the SelectionFlyout, an EditorSelectionFlyout (a Flyout subclass) that hosts a trimmed-down EditorToolbar.

The default mini-bar includes:

• Inline formatting: Bold, Italic, Underline, Strikethrough, Link
• List toggles: Bullet, Numbered
• Block configuration: Background color, Borders, Text alignment

The mini-bar anchors to the block containing the selection, rather than the pointer.

Replacing the default mini-bar

Within the <RichTextEditor> XAML tags, add a <RichTextEditor.SelectionFlyout> and specify a custom EditorSelectionFlyout. This can be used to host an EditorToolbar.

The outer Border named PART_Chrome is required — EditorSelectionFlyout uses it to distinguish the chrome from the surrounding shadow gutter when handling dismiss events.

This example shows a minimal mini-bar that only provides basic text formatting options.

<RichTextEditor>
  <RichTextEditor.SelectionFlyout>
    <EditorSelectionFlyout Placement="TopEdgeAlignedLeft"
                           OverlayDismissEventPassThrough="True">
      <Border Name="PART_Chrome" Classes="EditorMiniBarChrome">
        <EditorToolbar>

          <ToggleTool Action="{x:Static EditorActions.Bold}">
            <ToggleTool.Icon>
              <ContentPresenter ContentTemplate="{StaticResource EditorIcons.Bold}" />
            </ToggleTool.Icon>
          </ToggleTool>

          <ToggleTool Action="{x:Static EditorActions.Italic}">
            <ToggleTool.Icon>
              <ContentPresenter ContentTemplate="{StaticResource EditorIcons.Italic}" />
            </ToggleTool.Icon>
          </ToggleTool>

          <ToggleTool Action="{x:Static EditorActions.Underline}">
            <ToggleTool.Icon>
              <ContentPresenter ContentTemplate="{StaticResource EditorIcons.Underline}" />
            </ToggleTool.Icon>
          </ToggleTool>

        </EditorToolbar>
      </Border>
    </EditorSelectionFlyout>
  </RichTextEditor.SelectionFlyout>
</RichTextEditor>

Some recommendations:

• Apply the EditorMiniBarChrome style class to the surrounding Border for the default rounded, shadowed appearance.
• Keep the set of tools small. The mini-bar should complement the main toolbar, not duplicate it.

Disabling the mini-bar

Within the <RichTextEditor> XAML tags, set SelectionFlyout to {x:Null} to turn it off entirely.

<RichTextEditor SelectionFlyout="{x:Null}" />

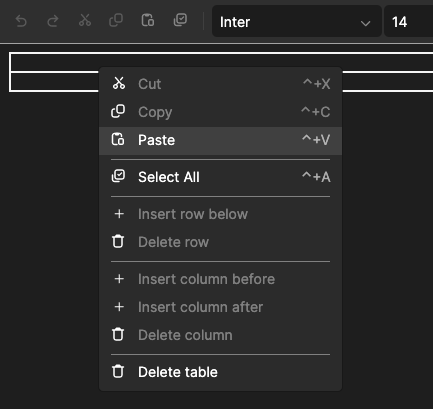

Default context menu

The contextual menu that opens when right-clicking within the text editor is the EditorContextMenu — a MenuFlyout subclass attached to RichTextEditor.ContextFlyout.

The default context menu contains:

• Cut, Copy, Paste
• Select All
• Table operations (Insert/Delete row, Insert/Delete column, Delete table) — visible only when the caret is inside a table.

EditorContextMenu can read TargetAreas on each EditorMenuItem in order to hide items that don't apply to the current context. Unused separator lines left by hidden groups are also hidden automatically.

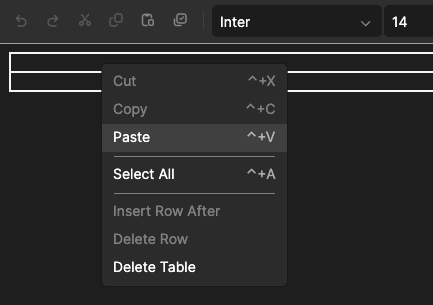

Replacing the context menu

Within the <RichTextEditor> XAML tags, add a <RichTextEditor.ContextFlyout> and specify a custom EditorContextMenu. To add actions to the menu, add individual tags for <EditorMenuItem>.

<RichTextEditor>
  <RichTextEditor.ContextFlyout>
    <EditorContextMenu Placement="Pointer">
      <EditorMenuItem Action="{x:Static EditorActions.Cut}" />
      <EditorMenuItem Action="{x:Static EditorActions.Copy}" />
      <EditorMenuItem Action="{x:Static EditorActions.Paste}" />

      <Separator />

      <EditorMenuItem Action="{x:Static EditorActions.SelectAll}" />

      <Separator />

      <!-- Only appears in tables -->
      <EditorMenuItem Action="{x:Static EditorActions.InsertRowAfter}"
                      TargetAreas="Table" />
      <EditorMenuItem Action="{x:Static EditorActions.DeleteRow}"
                      TargetAreas="Table" />
      <EditorMenuItem Action="{x:Static EditorActions.DeleteTable}"
                      TargetAreas="Table" />
    </EditorContextMenu>
  </RichTextEditor.ContextFlyout>
</RichTextEditor>

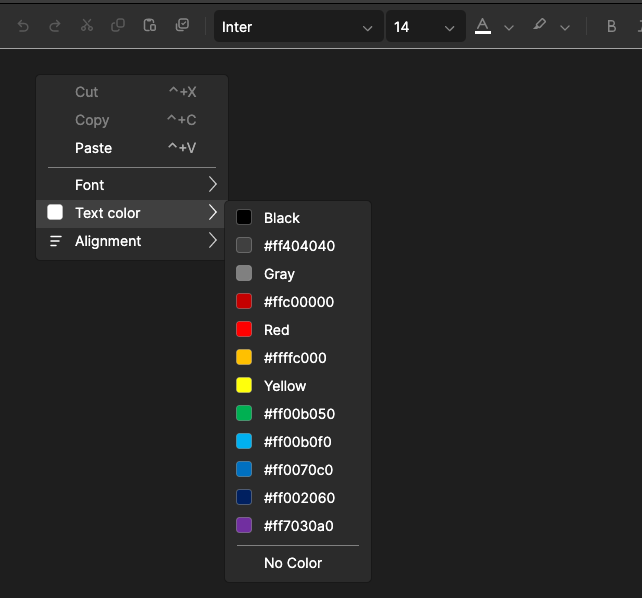

Adding property submenus

The same specialized menu items used for overflow also work in the context menu.

<EditorContextMenu Placement="Pointer">
  <EditorMenuItem Action="{x:Static EditorActions.Cut}" />
  <EditorMenuItem Action="{x:Static EditorActions.Copy}" />
  <EditorMenuItem Action="{x:Static EditorActions.Paste}" />

  <Separator />

  <FontFamilyMenuItem Action="{x:Static EditorActions.FontFamily}"
                            Header="Font" />
  <ColorMenuItem Action="{x:Static EditorActions.ForegroundColor}"
                       Header="Text color" />
  <TextAlignmentMenuItem Header="Alignment" TargetAreas="Text,Block" />
</EditorContextMenu>

Disabling the context menu

Within the <RichTextEditor> XAML tags, set ContextFlyout to {x:Null} to turn it off entirely.

<RichTextEditor ContextFlyout="{x:Null}" />

Theming and styling

Toolbar visuals are controlled through dynamic resources and style classes. You can override default settings at the application level, the window level, or on an individual EditorToolbar.

Sizing and color resources

Resource	Default	Purpose
EditorToolbarToolHeight	30	Tool button height.
EditorToolbarToolMinWidth	28	Minimum tool button width.
EditorToolbarToolPadding	6,4	Internal padding of tool buttons.
EditorToolbarButtonCornerRadius	6	Corner radius of tool buttons.
EditorToolbarToolOpacity	0.9	Tool opacity.
EditorToolbarSeparatorHeight	18	Separator line height.
EditorToolbarSubtleBorderBrush	Theme	Separator and subtle border color.
EditorToolbarPointerOverBackgroundBrush	Theme	Hover background color.
EditorToolbarCheckedBackgroundBrush	Theme	Active/checked background color.
EditorToolbarDisabledForegroundBrush	Theme	Disabled foreground color.

Example

<Application.Resources>
  <ResourceDictionary>
    <!-- Make toolbar buttons bigger -->
    <x:Double x:Key="EditorToolbarToolHeight">36</x:Double>
    <x:Double x:Key="EditorToolbarToolMinWidth">36</x:Double>
    <CornerRadius x:Key="EditorToolbarButtonCornerRadius">4</CornerRadius>

    <!-- Use a custom accent for checked tools -->
    <SolidColorBrush x:Key="EditorToolbarCheckedBackgroundBrush"
                     Color="#4CAF50" Opacity="0.25" />
  </ResourceDictionary>
</Application.Resources>

Style classes

Class	Applies to	Effect
ToolbarTool	Button, ToggleButton, SplitButton	Standard toolbar button sizing, transparency, hover/checked/disabled visuals, transitions. Apply when embedding a stock button inside an EditorToolbar so it blends with surrounding tools.
AreaAware	ToolbarGroup, ToggleTool, SeparatorTool, TablePickerTool, AlignmentFlyoutTool, and other EditorTool subclasses	Binds the active target area from the ancestor EditorToolbar and optionally drives IsVisible. Required on ToolbarGroup for contextual visibility to work.
EditorMiniBarChrome	Border	Compact rounded-border, drop-shadow appearance used by the default selection mini-bar.

Example

Add a plain Button to the toolbar without it looking out of place.

<EditorToolbar>
  <ToolbarGroup>
    <Button Classes="ToolbarTool" Click="OnExport_Click">
      <PathIcon Data="{StaticResource ExportGeometry}" />
    </Button>
  </ToolbarGroup>
  <!-- ... -->
</EditorToolbar>

Targeted styles

For precise control, write a style selector that targets a specific element within the toolbar.

<Style Selector="EditorToolbar > ToolbarGroup > ToggleTool">
  <Setter Property="Margin" Value="2,0" />
</Style>

See also

• RichTextEditor reference
• Extension Patterns
• Performance Tuning
• Troubleshooting RichTextEditor
